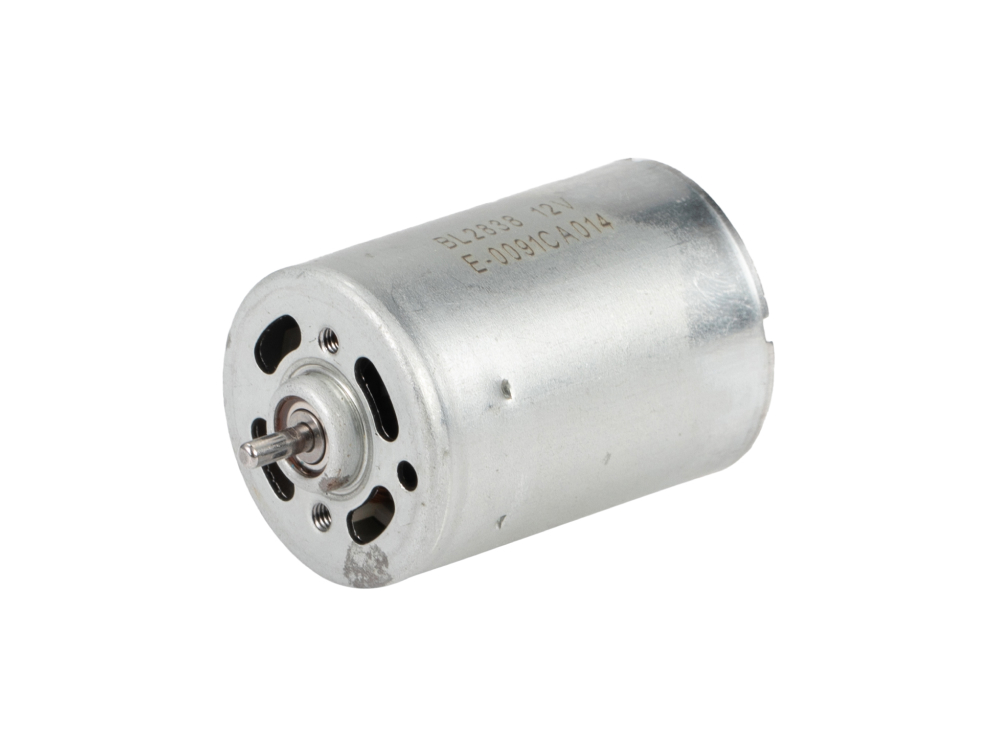

BL28 Brushless DC Motor
$14.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 5,100 - 5,300 rpm
- Rated Torque:
- 78 - 89 gf·cm
- Stall Torque:
- 497 - 534 gf·cm
- Rated Power:
- 4.12 - 4.64 W
Specifications Toggle Specifications
| Motor Model | BL28-126000 / BL28-246000 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 6,000 rpm |
| Rated Speed | 5,100 - 5,300 rpm |
| No Load Current | 100 - 150 mA |
| Rated Current | 300 - 490 mA |
| Stall Current | 2,620 - 4,300 mA |
| Rated Torque | 78 - 89 gf·cm |
| Stall Torque | 497 - 534 gf·cm |
| Rated Power | 4 - 5 W |
| Max Efficiency | 71.000 - 80.000 % |
| Motor Diameter | 27.7 mm |
| Motor Length | 37.5 mm |
| Motor Weight | 84 g |
| Shaft Diameter | 2.3 mm |
| Shaft Configuration | Single |
| Working Lifespan | 5,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 48 - 50 dB |
| Noise Level At 50 cm | 43 - 45 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 4 |
| Number Of Phases | 3 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | Customized |
| Motor Control | 3 phase rectangular wave rectified + PWM |
| Gearbox | PG28 |
