BLDC Motors

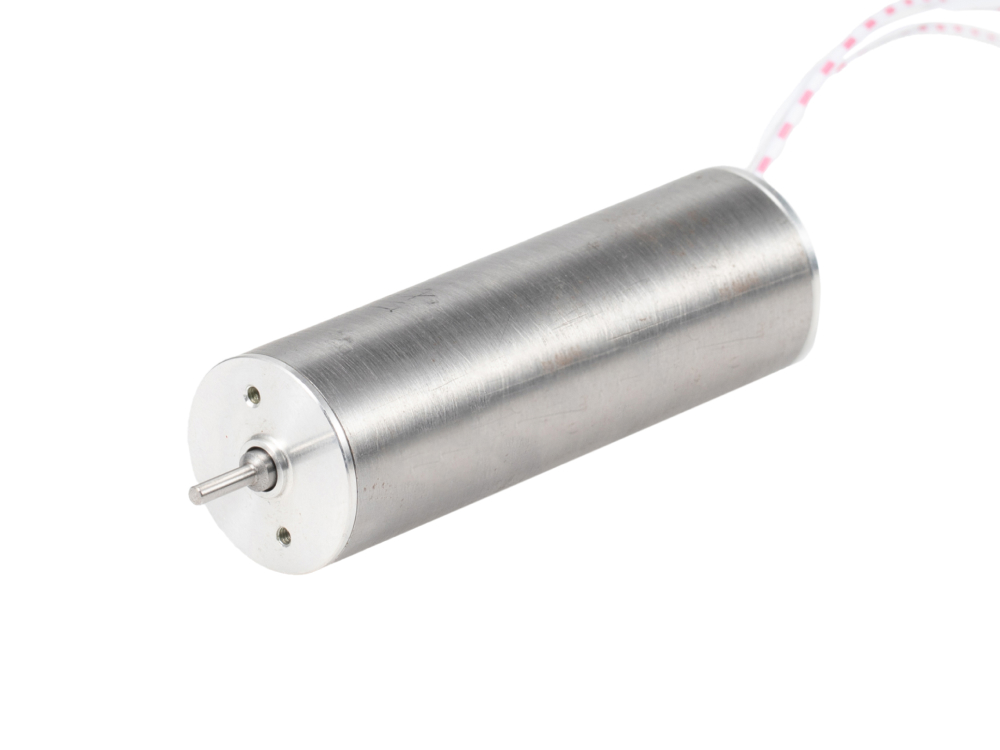

BL22 Brushless DC Motor
$14.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
4 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 4,900 - 8,300 rpm
- Rated Torque:
- 122 - 179 gf·cm
- Stall Torque:
- 556 - 1,052 gf·cm
- Rated Power:
- 6.3 - 15.5 W
Specifications Toggle Specifications
| Motor Model | BL22-126000 / BL22-1210000 / BL22-246000 / BL22-2410000 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 6,000 - 10,000 rpm |
| Rated Speed | 4,900 - 8,300 rpm |
| No Load Current | 100 - 450 mA |
| Rated Current | 500 - 2,200 mA |
| Stall Current | 1,800 - 7,600 mA |
| Rated Torque | 122 - 179 gf·cm |
| Stall Torque | 556 - 1,052 gf·cm |
| Rated Power | 6 - 16 W |
| Max Efficiency | 80.000 % |
| Motor Diameter | 22 mm |
| Motor Length | 67.4 mm |
| Motor Weight | 103 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single |
| Working Lifespan | 5,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | 20 Steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 8 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | No |
| Motor Control | Sensorless external driver |
| Gearbox | PG22 |
